PRODUCT DESCRIPTION

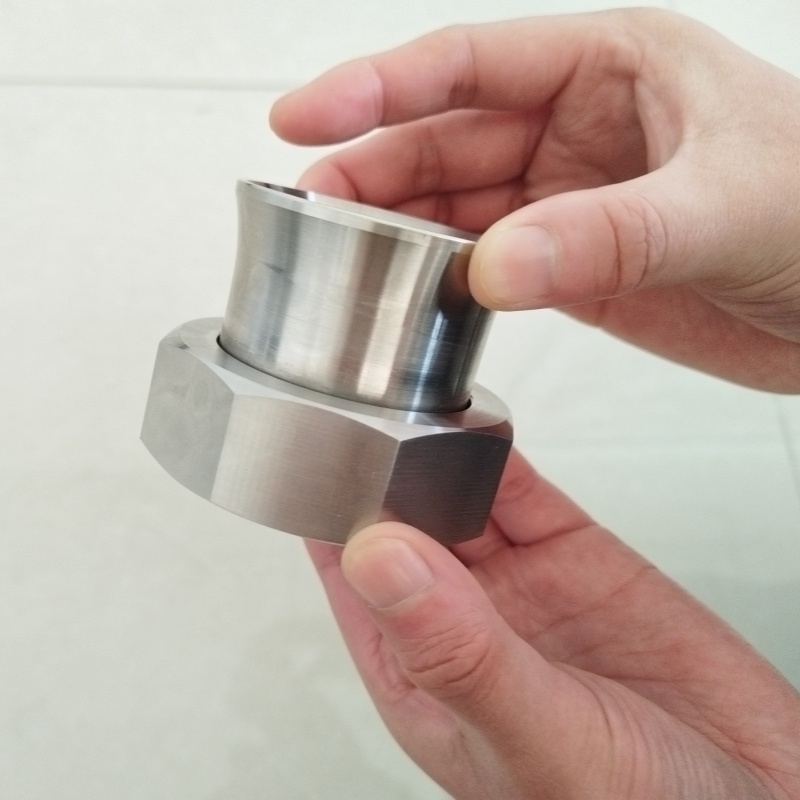

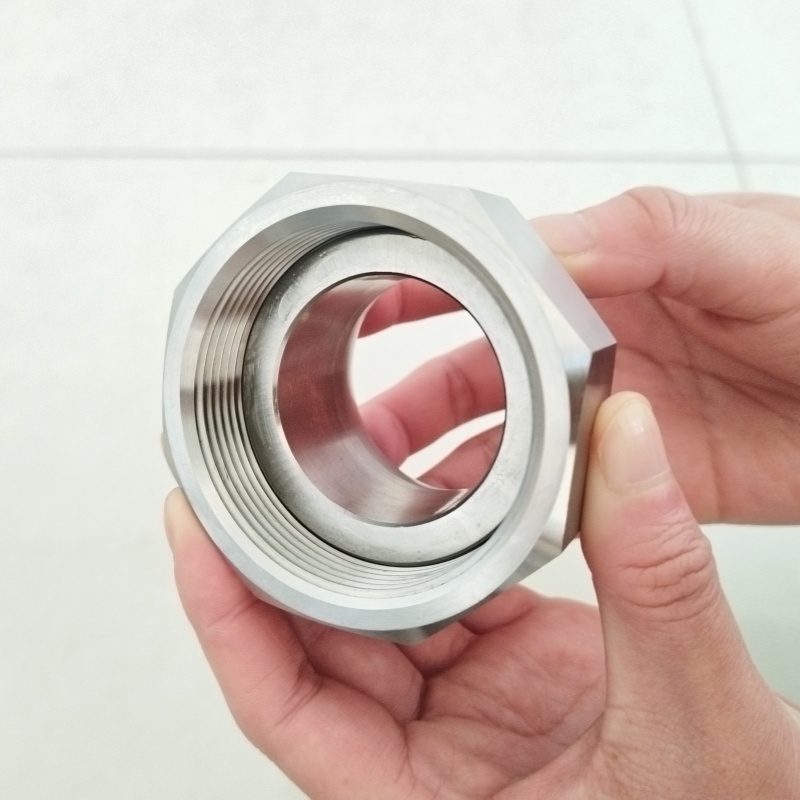

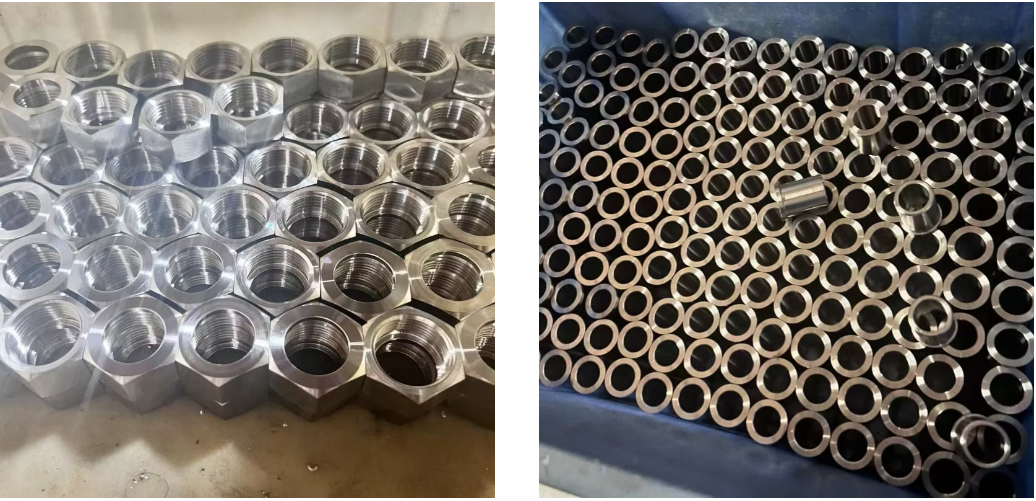

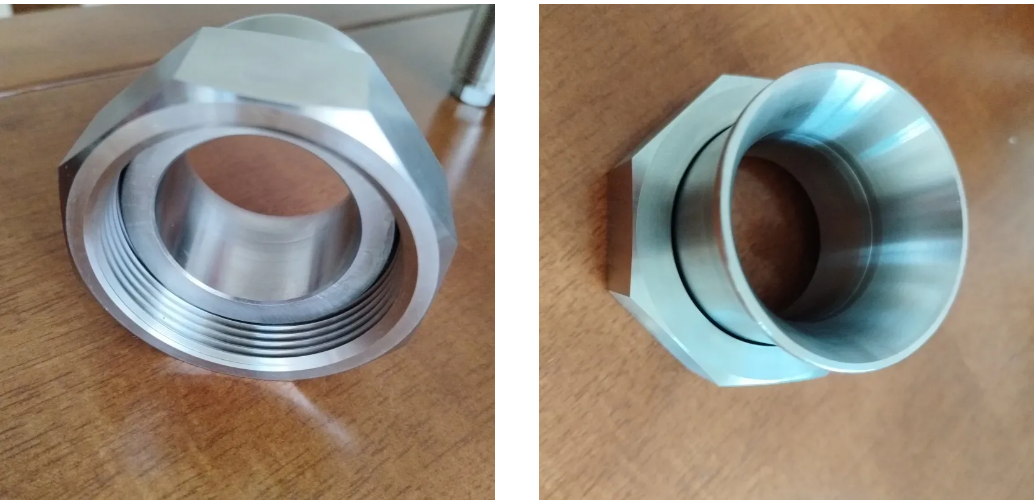

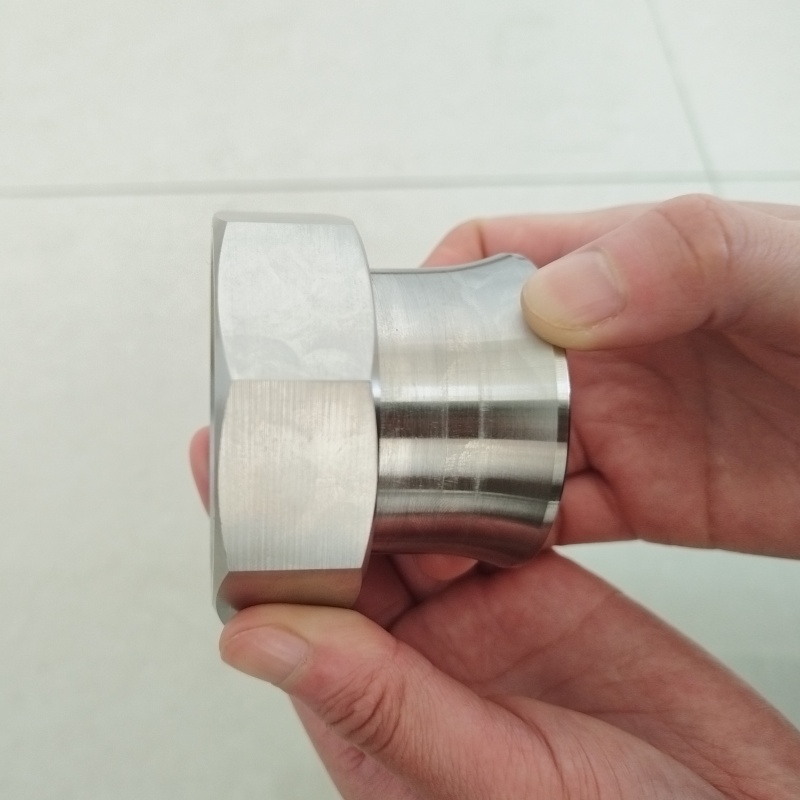

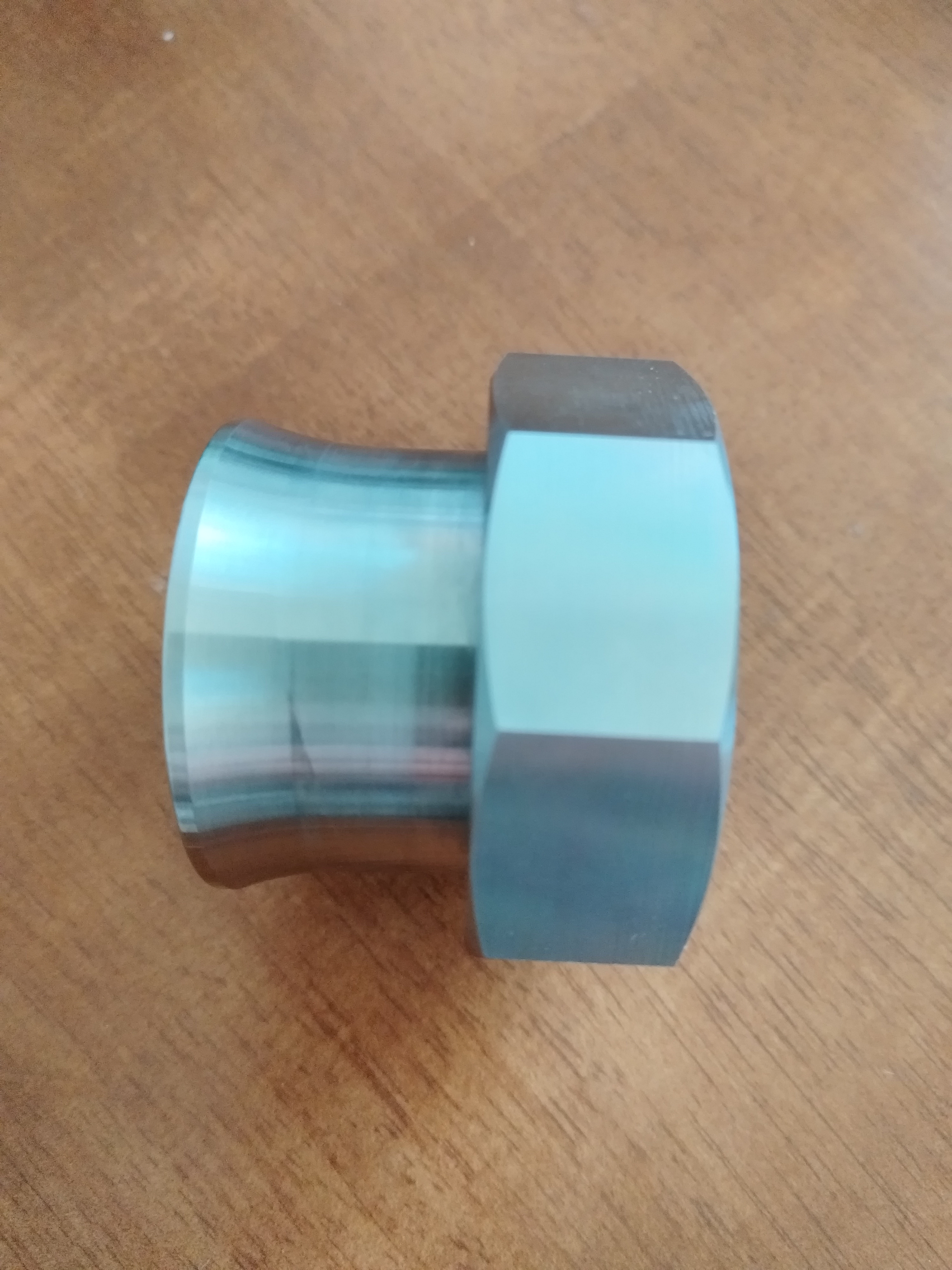

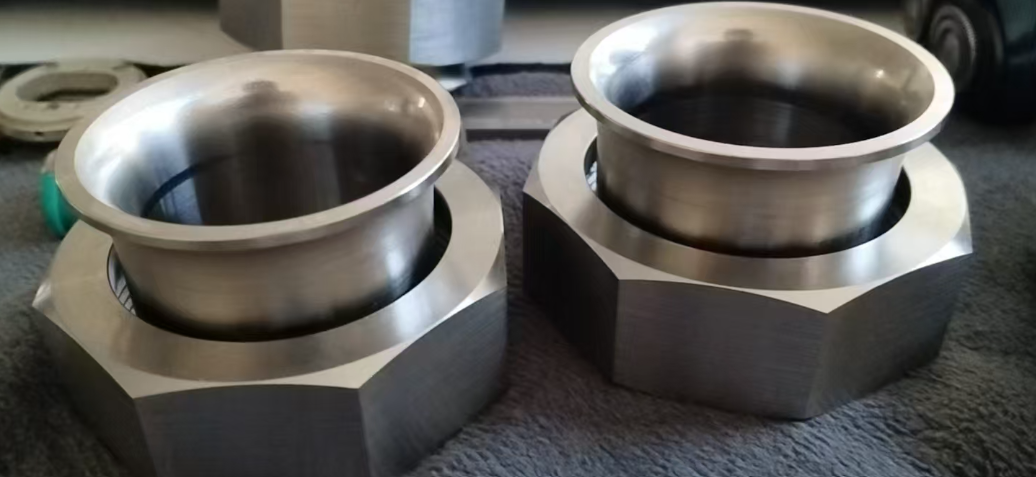

Our Split Collar Nut, crafted from premium stainless steel 316, is a high-performance fastening solution designed to excel in critical environments. Combining advanced manufacturing techniques with rigorous quality control, this product delivers exceptional precision (±0.05mm), durability, and corrosion resistance, making it ideal for applications in pipelines, pressure vessels, refrigeration systems, and fluid/gas transport infrastructure.
Key Features
- Superior Material: Stainless steel 316 ensures outstanding resistance to corrosion, high temperatures, and harsh chemicals, guaranteeing longevity in demanding conditions.
- Precision Machining：
- Step 1: CNC machining centers transform round steel bars into perfectly dimensioned equilateral octagons.
-Step 2: CNC lathes meticulously craft internal bores, threads, and sleeves with micron-level accuracy.
- **Step 3**: Hydraulic presses assemble inner and outer sleeves seamlessly for a secure, interference-free fit.

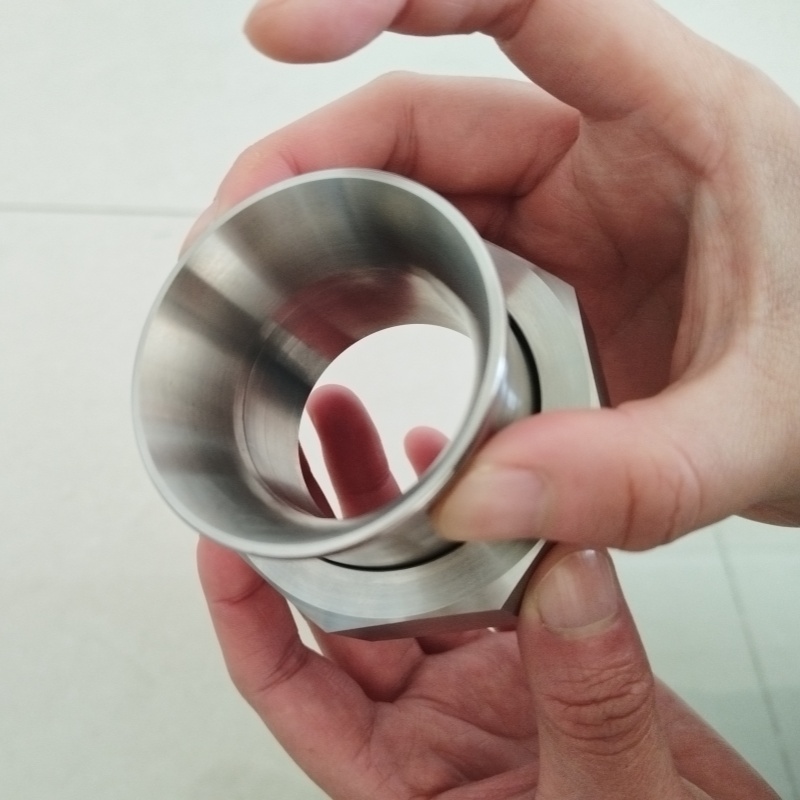

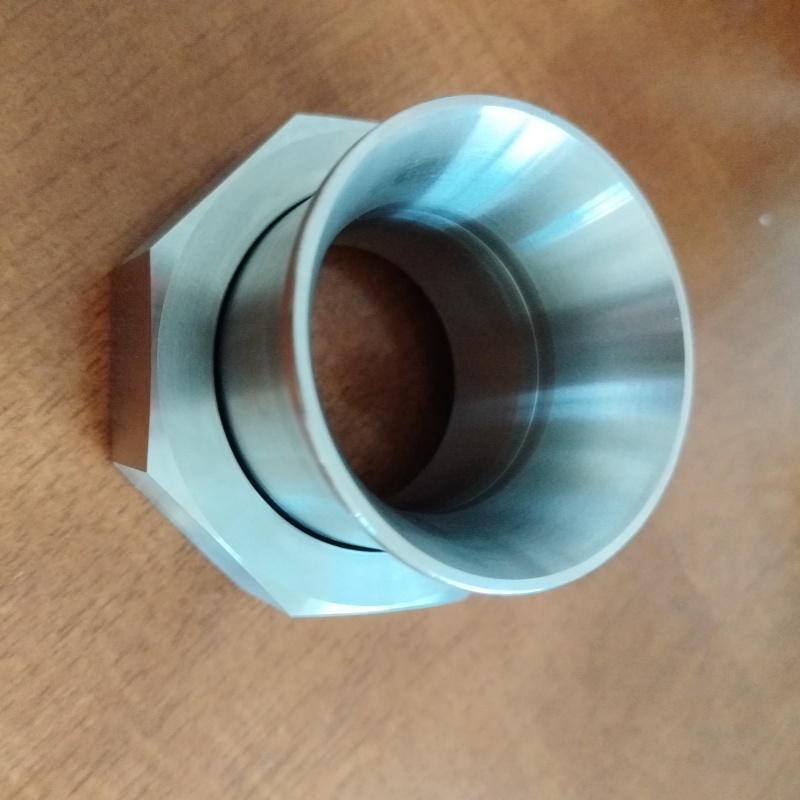

- Step 4: Flared mouth expansion via precision molds ensures optimal grip and load distribution.
- Flawless Finish: Mirror-smooth surfaces free of burrs or imperfections minimize friction and prevent contamination.
- Rigorous Tolerances: ±0.05mm dimensional consistency guarantees reliable performance under high stress and vibration.
Technical Specifications
- Material: Stainless Steel 316 (ASTM A276)
- Thread Standards: Customizable to ISO, ANSI, or client-specific requirements
- Surface Finish: Ra ≤ 0.8 μm
- Temperature Range: -50°C to 800°C (short-term)
- Pressure Rating: Up to 10,000 PSI (dependent on configuration)
Primary Applications
- Pipeline flange connections
- Pressure vessel sealing systems
- Refrigeration compressor assemblies
- Hydraulic/pneumatic fluid transfer units
- Chemical processing equipment
Quality Assurance
Every nut undergoes 100% dimensional inspection via CMM and visual defect screening. Certificates of Conformance (CoC) with traceable heat numbers are provided upon request.
Why Choose Our Split Collar Nut?
- Proven Reliability: Optimized for leak prevention and long-term structural integrity.
- Customization Ready: Modify dimensions, threading, or flaring angles to match your exact specifications.
- Cost Efficiency: Reduced maintenance needs and extended service life lower total ownership costs.
Elevate your equipment's performance with a fastener engineered to meet the strictest industrial standards. Contact us today to discuss your project requirements or request samples.
OUR CAPACITY
Material | Steel: Carbon steel/ Mild steel/ Cold roll steel/ Hot roll steel |
Stainless : SS201, SS303, SS304, SS316 etc. | |
Aluminum: AL5052, AL6061, AL6063,AL7075 etc. | |
others | |
Equipment&working capacity | Laser Cutting Machines*2（6000W&12000W） |
digital plasma cutting machine：processing area 3000MM*15000MM | |
300T CNC bending machine： processing area 4000MM to 12000MM | |
6000W pipe cutting machine：processing area φ530MM*6MM | |
Vertical Machining Center：working area 1700MM*1000MM | |
Horizontal Machining Center,working area 1000MM*1000MM | |
Gantry Machining Center,working area 12000MM*2000MM | |
CNC milling machine* two sets, working area 1200MM*600MM | |
CNC wire cutting machine* two sets, working area 600MM*600MM | |
CNC lathes ,two sets, working area 1000M* φ380MM | |
Gantry compound machining center | |
CNC bending machine | |
welding robots | |
Drawing software | CAD,solidworks，CASA，Pro-cam，CAM-PATH |
Drawing format | PDF,DWG,STEP,JPG,IGS,SLD,SLDPRT,DXF |
Finishing | Powder coating |
Polishing | |
Spraying | |
Galvanized(zinc-plated, nickel-plated,chrome-plated,silver-plated) | |
Customized |
OUR CERTIFICATION
Why Partner with Us?
1、Deep Industry Expertise：
Founded by Mr. Du, a 21-year veteran in metal fabrication, our team prioritizes your operational needs while maintaining strict adherence to international quality standards.
2、Proven Global Reliability：
Trusted by industry leaders including a French mining conglomerate and a major Russian industrial group, we deliver:
✅ 100% on-time delivery rate
✅ <1% defective rate across 5,000+ annual shipments
✅ Full ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Safety) certification
3、End-to-End Customization
From prototype development to batch production, our integrated workshop handles:
• Sheet metal fabrication • Structural steel components • Surface treatment • Precision welding
FAQ:
1.Q: What kinds of information you need for a quote?
A: In order to quote earlier, please provide us the following information with your inquiry.
Detailed drawings (STEP, CAD, PROE, DXF and PDF files)
Material requirement (ALU.,STEEL ,IRON,COPPER,etc.)
Surface treatment (anodizing,powder coating, sand blasting, plating, polishing, brushing)
Quantity (per order/ per month/ annual)
Any special demands or requirements, such as packing, labels, delivery.
2.Q: What shall we do if we do not have drawings?
A: Please send your samples to us with drafts (Thickness, Length, Height, Width), CAD or 3D files will be made by our engineer later on.
3.Q: Is it possible to know how your products going on without visiting our company?
A: We will offer a detailed production schedule and send weekly reports with photos or videos which show the manufacturing process.
4.Q: Can I have a trial order or samples only for several pieces?
A: We will charge sample or mold cost first, and we will refund the sample cost when you placed mass orders with negotiation.
