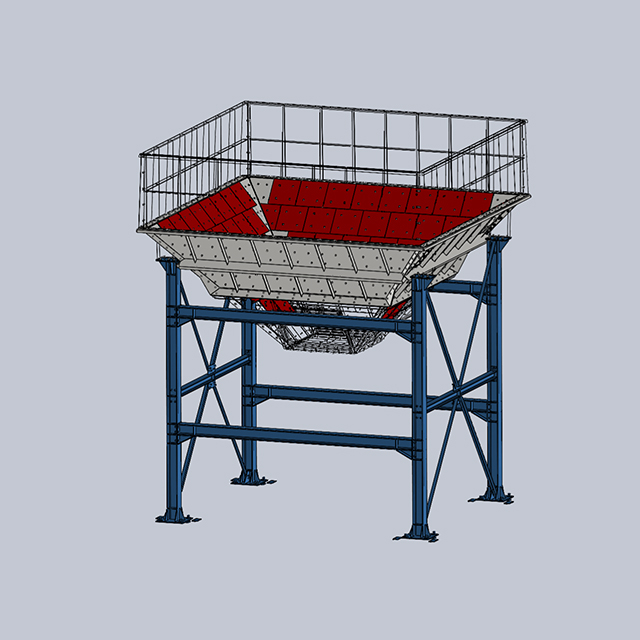

Our Mining Hopper is engineered to withstand extreme abrasion and impact in demanding mining and bulk material transportation applications. Constructed from high-strength steel Q345B (EN 10025 S355JR equivalent) and reinforced with NM400 wear-resistant lining plates (Hardox® 400 equivalent), this hopper delivers exceptional durability while ensuring easy maintenance through its innovative modular design.
Key Features
- Dual-Material Construction:
- Structural Frame: Q345B steel provides superior load-bearing capacity and structural stability.
- Wear-Resistant Liner: NM400 hardened steel (400HBW hardness) protects critical contact areas, offering 3-5× longer service life compared to standard liners.
- Smart Modular Design:
- Bolt-on liner attachment system enables quick replacement without welding or specialized tools.
- Precisely machined screw holes ensure perfect alignment during liner installation.
- Optimized Geometry:
- 5m×5m×7.5m dimensions engineered for high-volume material flow with anti-clogging profile.
- 30°-45° slope angles (customizable) to match specific material characteristics.
- Advanced Manufacturing:
1. Precision laser cutting ensures ±1mm dimensional accuracy.
2. CNC press brake forms complex geometries with <0.5° angular tolerance.
3. Robotic welding (MAG process) guarantees full-penetration joints.
4. Hot-dip galvanized surface (standard) provides 80μm zinc coating for corrosion resistance.
5. In order to suppress the dust generated when the ore is dumped, we can cover the top of the hopper with a rubber grille, which has a good dust suppression effect.
Technical Specifications | |
Structural Material | Q345B (EN S355JR equivalent) |
Liner Material | NM400 (Hardox® 400 equivalent) |
Liner Thickness | 8-25mm (customizable) |
Surface Treatment | Galvanized (paint/powder coat optional) |
Operating Temperature | -40°C to +120°C |
Capacity | 180-220m³ (depends on bulk density) |
Core Applications:
- Iron/copper/gold ore primary crushing stations
- Coal handling and preparation plants (CHPP)
- Aggregate processing facilities
- Cement raw material feeding systems
- Bulk cargo terminal transfer points
Competitive Advantages:
- Cost-Saving Maintenance: Replace only worn liners instead of entire structure, reducing downtime by 70%.
- Enhanced Safety: Smooth inner surface prevents material buildup and reduces dust explosion risks.
- Adaptable Configuration:
- Liner layout patterns optimized for your material abrasiveness
- Optional impact bars/ribs for extra protection in high-velocity zones
- Global Compliance: Meets ISO 21873 (mobile mining equipment) and AS 4324 (material handling) standards.
Quality Verification
- UT testing on all structural welds
- Hardness testing certification for NM400 liners
- 3D laser scanning for dimensional verification
Why Partner With Us?
- 15+ years experience in mining equipment fabrication
- In-house engineering team for application-specific modifications
- Flexible MOQ with container-optimized packaging
Upgrade your material handling system with a hopper that combines German-engineered durability with Chinese manufacturing efficiency. Request technical drawings or visit our factory to see live demonstrations.
Wear-resistant liner：The difficulty lies in the drilling, which requires a special drill bit because the wear-resistant lining is particularly hard.
OUR CAPABILITY:
Material | Steel: Carbon steel/ Mild steel/ Cold roll steel/ Hot roll steel |
Stainless : SS201, SS303, SS304, SS316 etc. | |
Aluminum: AL5052, AL6061, AL6063,AL7075 etc. | |
others | |
Equipment&working capacity | Laser Cutting Machines*2（6000W&12000W） |
digital plasma cutting machine：processing area 3000MM*15000MM | |
300T CNC bending machine： processing area 4000MM to 12000MM | |
6000W pipe cutting machine：processing area φ530MM*6MM | |
Vertical Machining Center：working area 1700MM*1000MM | |
Horizontal Machining Center,working area 1000MM*1000MM | |
Gantry Machining Center,working area 12000MM*2000MM | |
CNC milling machine* two sets, working area 1200MM*600MM | |
CNC wire cutting machine* two sets, working area 600MM*600MM | |
CNC lathes ,two sets, working area 1000M* φ380MM | |
Gantry compound machining center | |
CNC bending machine | |
welding robots | |
Drawing software | CAD,solidworks，CASA，Pro-cam，CAM-PATH |
Drawing format | PDF,DWG,STEP,JPG,IGS,SLD,SLDPRT,DXF |
Finishing | Powder coating |
Polishing | |
Spraying | |
Galvanized(zinc-plated, nickel-plated,chrome-plated,silver-plated) | |
Customized |
OUR CERTIFICATION:
OUR PACKAGE:
Our company has been producing and selling products abroad for 10+ years, and we are very familiar with the packaging requirements of each customer, such as the American packaging regulations, European packaging regulations, Amazon packaging requirements, etc.
Generally, we use foam plastic bags to package products separately, then put them into cardboard boxes, and then put them into pallets or plywood boxes. This ensures that the product will not be crushed, bumped, or rusted during transportation.
FAQ:
1.Q: What kinds of information you need for a quote?
A: In order to quote earlier, please provide us the following information with your inquiry.
Detailed drawings (STEP, CAD, PROE, DXF and PDF files)
Material requirement (ALU.,STEEL ,IRON,COPPER,etc.)
Surface treatment (anodizing,powder coating, sand blasting, plating, polishing, brushing)
Quantity (per order/ per month/ annual)
Any special demands or requirements, such as packing, labels, delivery.
2.Q: What shall we do if we do not have drawings?
A: Please send your samples to us with drafts (Thickness, Length, Height, Width), CAD or 3D files will be made by our engineer later on.
3.Q: Is it possible to know how your products going on without visiting our company?
A: We will offer a detailed production schedule and send weekly reports with photos or videos which show the manufacturing process.
4.Q: Can I have a trial order or samples only for several pieces?
A: We will charge sample or mold cost first, and we will refund the sample cost when you placed mass orders with negotiation.
